How Your Car's Cooling System Works: A DIY Guide

Your engine produces an enormous amount of heat — enough to destroy itself in minutes without a cooling system working continuously in the background. Understanding how that system works doesn't just satisfy curiosity; it helps you diagnose problems faster, maintain the system correctly, and know when a component actually needs replacing.

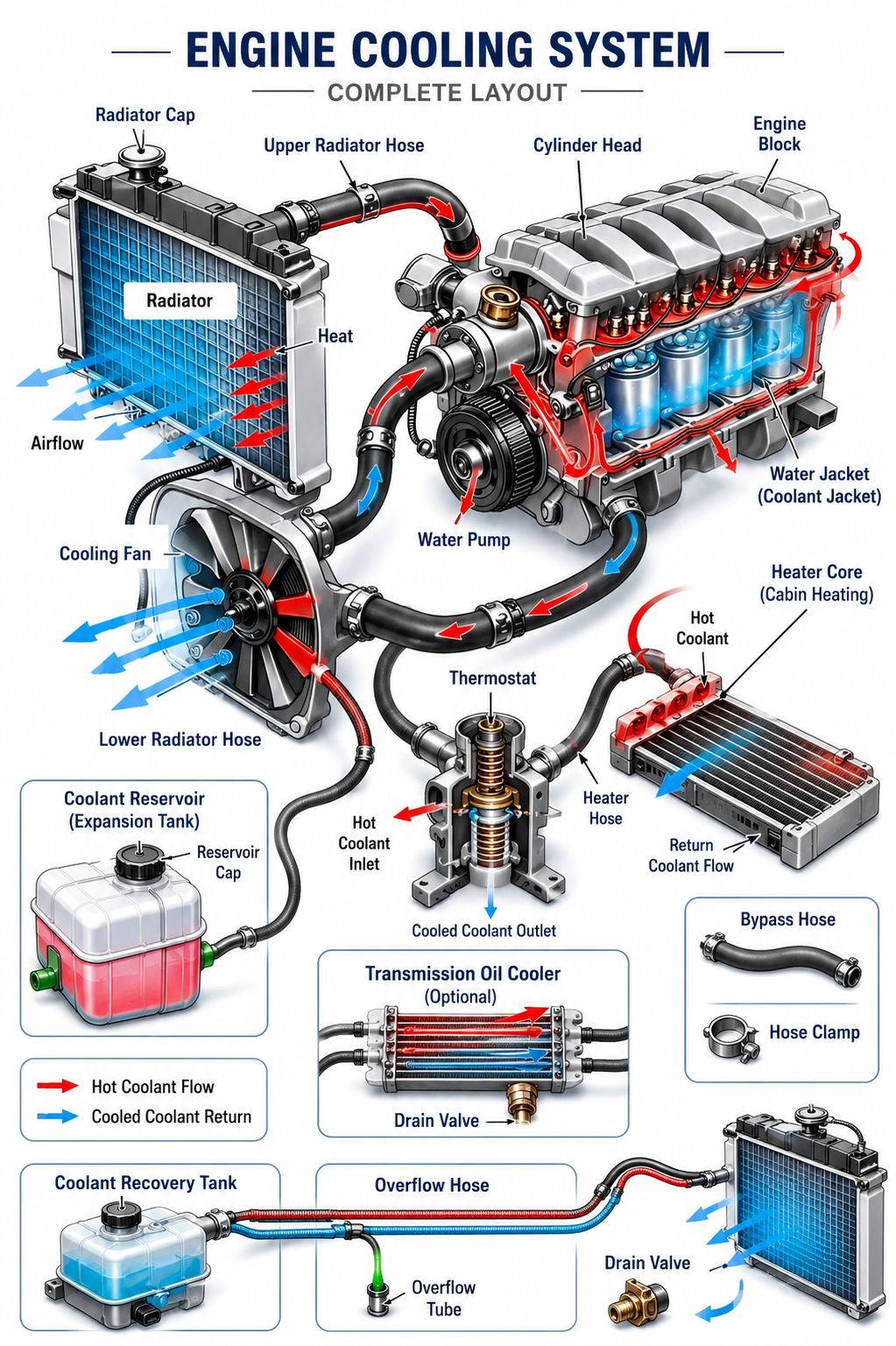

How the System Works: Forced Circulation

Modern vehicles use a forced-circulation liquid cooling system. Rather than relying on gravity or convection, a water pump actively drives coolant through a closed loop at all times. The four pillars of the system are: the water pump driving flow, the thermostat controlling which circuit the coolant travels, the radiator dissipating heat, and the expansion tank stabilising pressure.

The Core Components

Water Pump

The water pump is the heart of the system. It uses a centrifugal impeller to pressurise and circulate coolant continuously. On most vehicles, the pump is belt-driven off the crankshaft; on newer platforms, an electric water pump replaces the mechanical unit, allowing the engine management system to control coolant flow independently of engine speed. A failing water pump is one of the most common causes of engine overheating.

Engine Water Jacket

Cast into the engine block and cylinder head are a network of coolant passages called the water jacket. As coolant flows through these channels, it absorbs heat directly from the combustion chambers and cylinder walls — carrying that thermal energy away before it can cause damage.

Thermostat

The thermostat is a temperature-controlled valve that determines which circuit the coolant follows. It remains closed below approximately 87°C, keeping coolant circulating within the engine only (the small circuit) to allow fast warm-up. Once coolant reaches 87°C, the thermostat opens and redirects flow through the radiator (the large circuit) for cooling. A stuck-closed thermostat causes overheating; a stuck-open thermostat prevents the engine from reaching operating temperature.

Radiator

The radiator is where heat leaves the system. It consists of an aluminium honeycomb core flanked by upper and lower tanks. Hot coolant enters the top tank, passes through hundreds of narrow tubes surrounded by thin aluminium fins, and exits the bottom tank significantly cooler. Airflow through the fins — whether from vehicle motion or the cooling fan — carries the heat away. The aluminium construction is lightweight and thermally efficient, but it is vulnerable to impact damage and electrolytic corrosion from degraded coolant.

Cooling Fan

At low speeds and at idle — when ram airflow through the radiator is insufficient — an electric cooling fan engages to maintain airflow. The fan is controlled either by a thermostatic switch or directly by the ECU, which activates it based on coolant temperature sensor feedback. On most modern vehicles, the fan runs at variable speed to balance cooling demand against electrical load.

Expansion Tank

Also called the coolant reservoir or overflow tank, the expansion tank compensates for the volume changes that occur as coolant heats and cools. It also serves as a degas point, allowing trapped air to escape the system, and acts as the fill point for coolant top-ups. The system operates under pressure — typically 1.0 to 1.3 bar — which raises the boiling point of the coolant above 120°C and prevents vapour formation inside the engine.

Coolant (Antifreeze)

The coolant itself is a mixture of ethylene glycol and water, typically in a 50/50 ratio. It serves four functions simultaneously: it prevents freezing in cold climates, raises the boiling point of the fluid, inhibits corrosion of metal components, and transfers heat efficiently. Coolant degrades over time — the corrosion inhibitors break down — which is why regular coolant changes (typically every 2–5 years depending on the formula) are critical. Running old coolant accelerates internal corrosion of the radiator, water pump, and heater core.

Two Operating Circuits

Small Circuit (Cold Start / Low Temperature)

Path: water pump → engine water jacket → thermostat (closed) → back to water pump. With the thermostat closed, coolant bypasses the radiator entirely and circulates only within the engine. This allows the engine to reach operating temperature quickly, reducing friction, fuel consumption, and wear during the critical warm-up phase.

Large Circuit (Normal / High-Temperature Operation)

Path: water pump → engine water jacket → thermostat (open) → radiator → expansion tank → back to water pump. Once the thermostat opens at 87°C, coolant flows through the full circuit including the radiator. The system maintains coolant temperature in the 85–105°C range — the optimal window for combustion efficiency, emissions control, and component longevity.

Why It Matters for DIY Maintenance

A well-functioning cooling system does three things that directly affect engine life: it prevents overheating that warps cylinder heads and blows head gaskets, it prevents running too cold which increases fuel consumption and cylinder wear, and it maintains the stable temperature that engine management systems are calibrated for.
